The project for the office and library of Atelier do Diretor Giovanni Bianco – GB65 is based on the architectural principle of valuing the longitudinal axis as the organizer of flows and visual relationships to better utilize the available space.

One of the project’s premises was to create different atmospheres between the spaces, emphasized by the choice of structural elements: steel in the office and wood in the library. Located on different floors of the same building, they each occupy an area of 140 square meters.

009

003

323 Diagramas interior 2024 2

005

006

PLANTA BIBLIOTECA

Unsaved Drawing1 ARQ103 EDIT

PLANTA ATELIE SITE

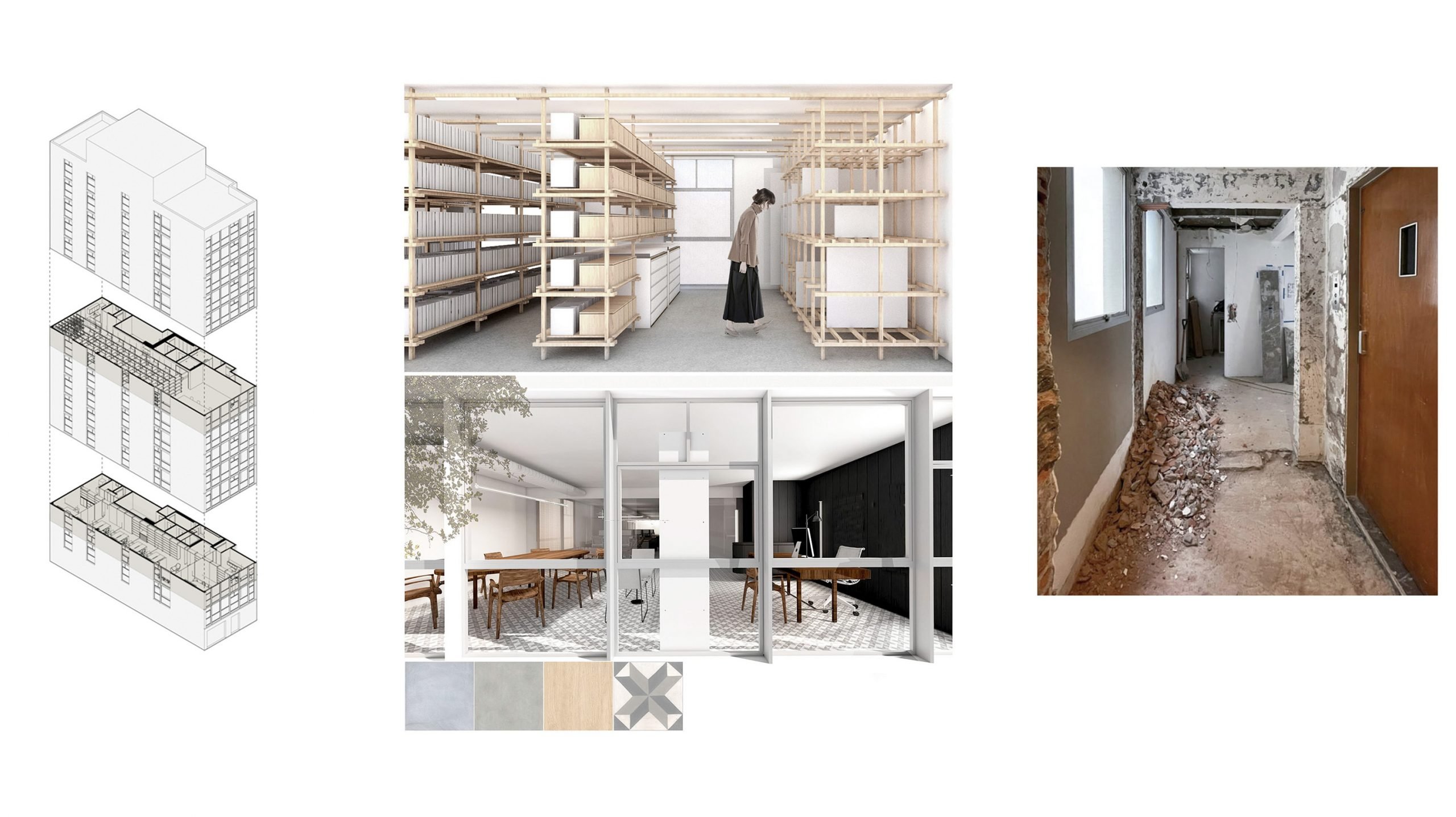

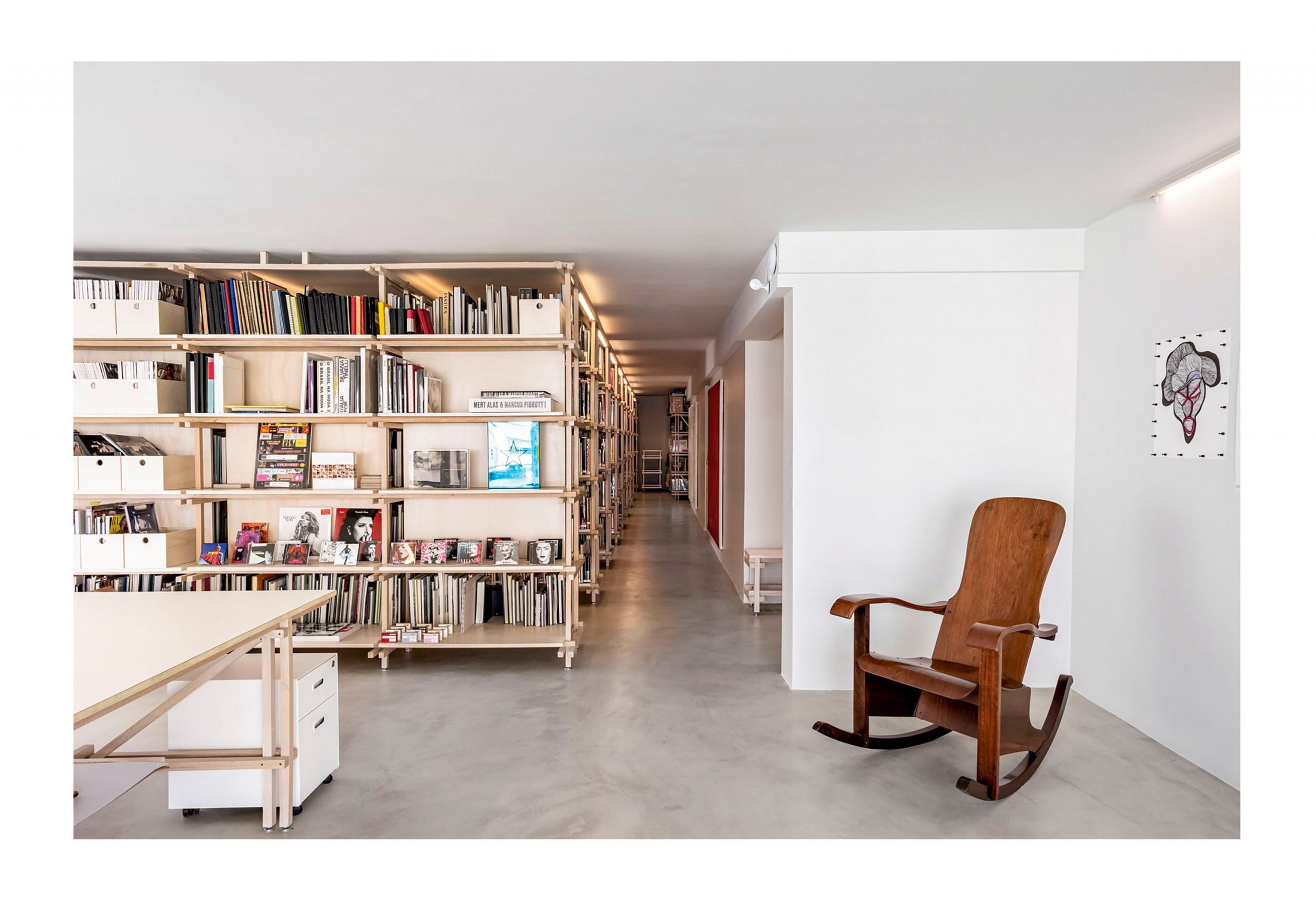

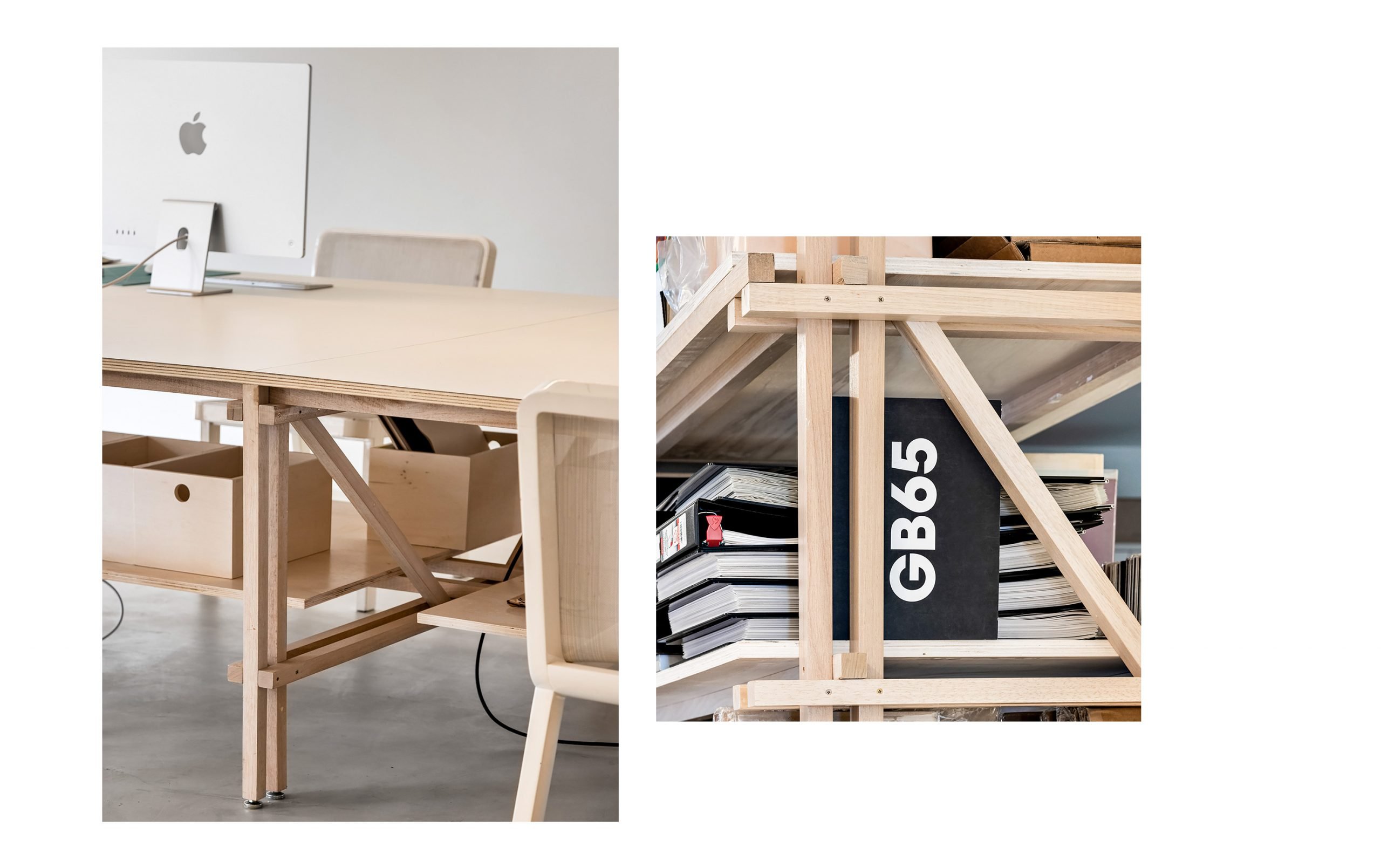

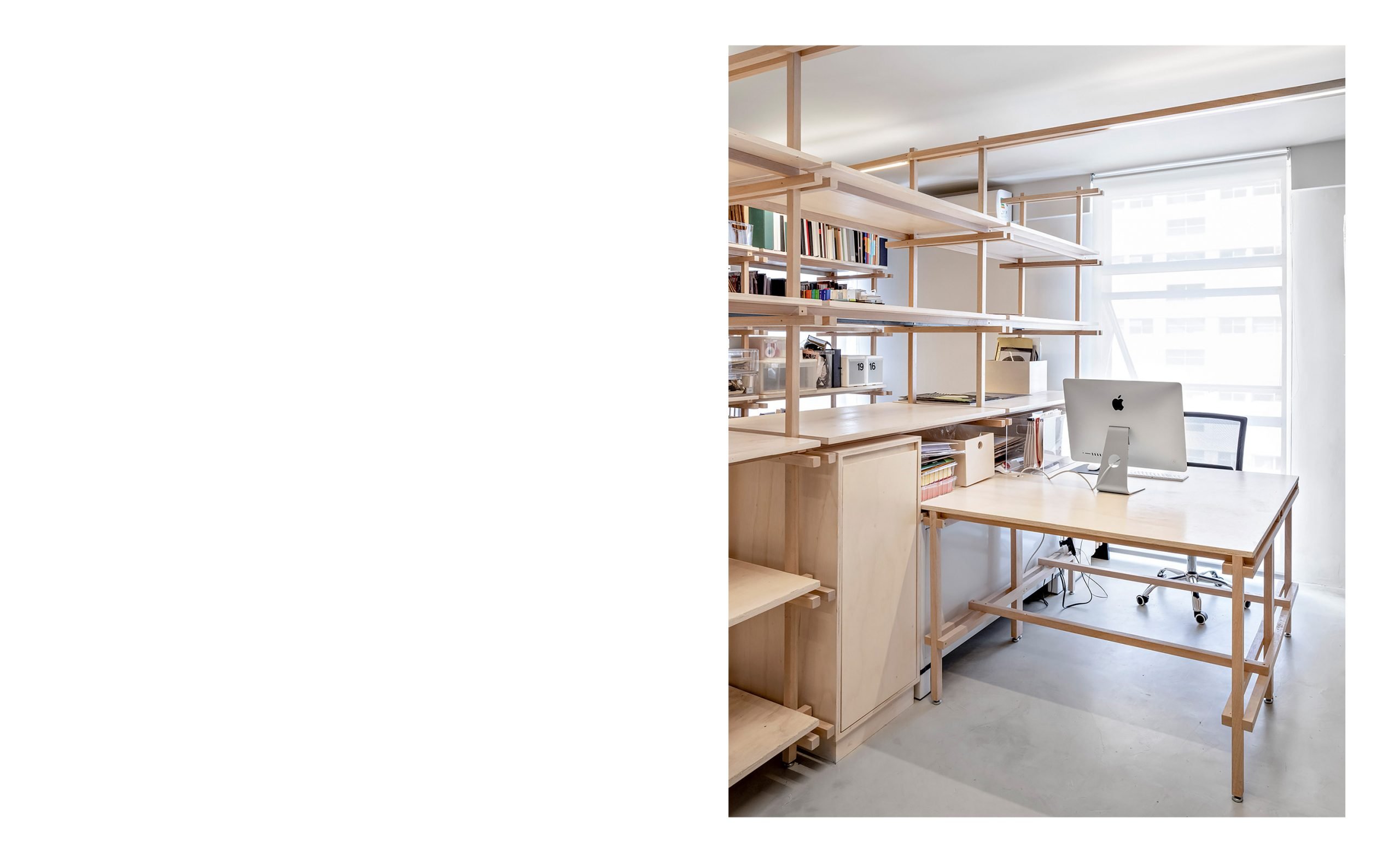

For the library, located a few floors above, the project utilized a combination of modular wooden pieces designed to create all the furniture, including bookshelves, tables, ceilings, and lighting fixtures. By employing a single system—solid wood joints and marine plywood panels—it was possible to design all the elements for both the library and the art director’s studio. The design aimed to combine functionality with beauty and lightness. For this space, a modular system was also developed to accommodate a load and variation of dimensions, given the need to store 8,000 items in the collection.

In both projects, the choice was made to use a limited number of materials, as Giovanni’s own work would fill the space with diverse colors and forms.

0 IMG 5050 copy

001

IMG 5036 copy

013

IMG 5098 copy

IMG 5016 copy

014

016

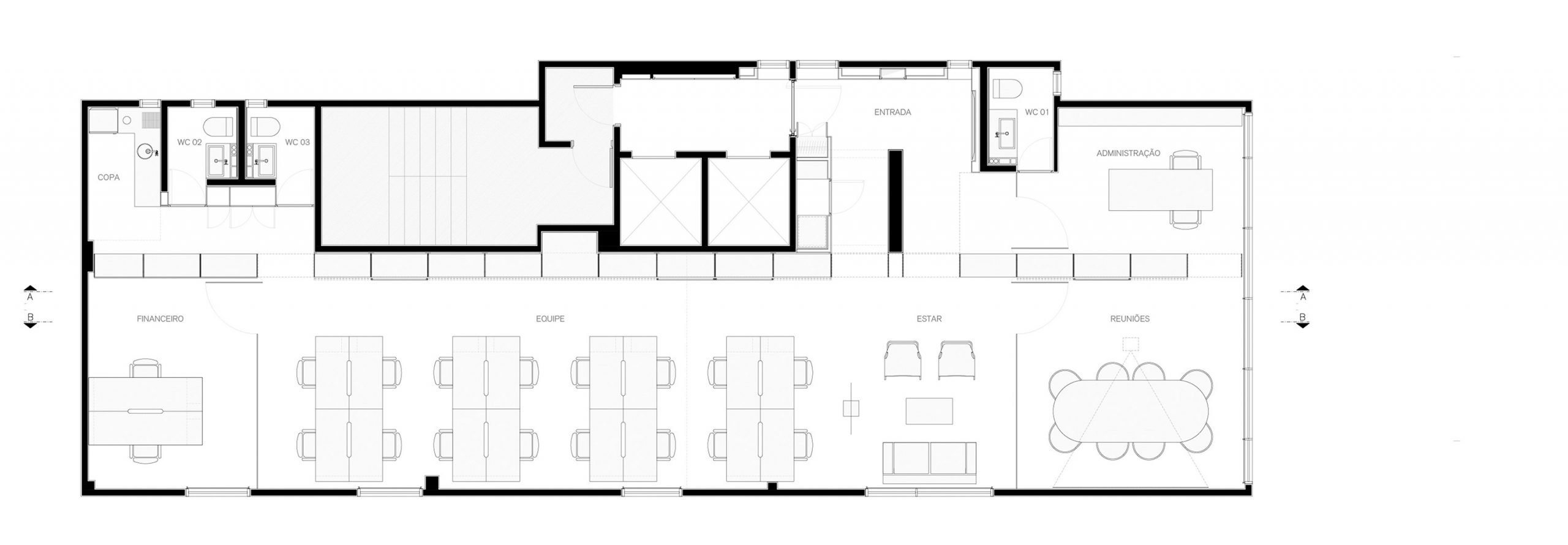

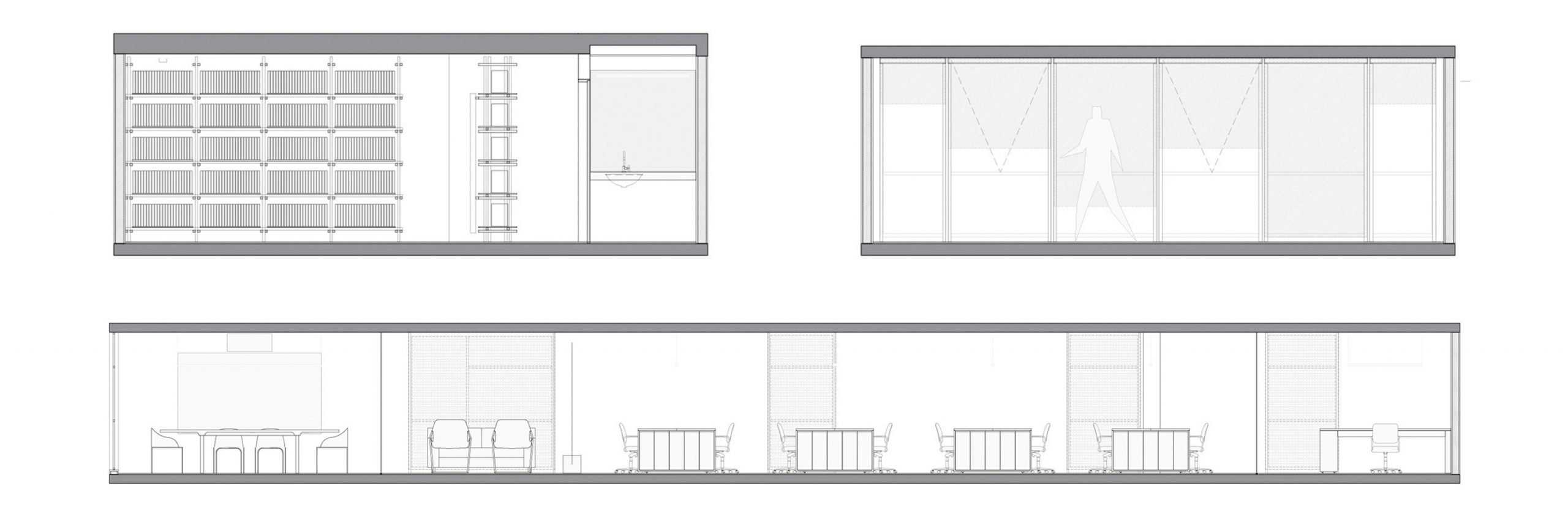

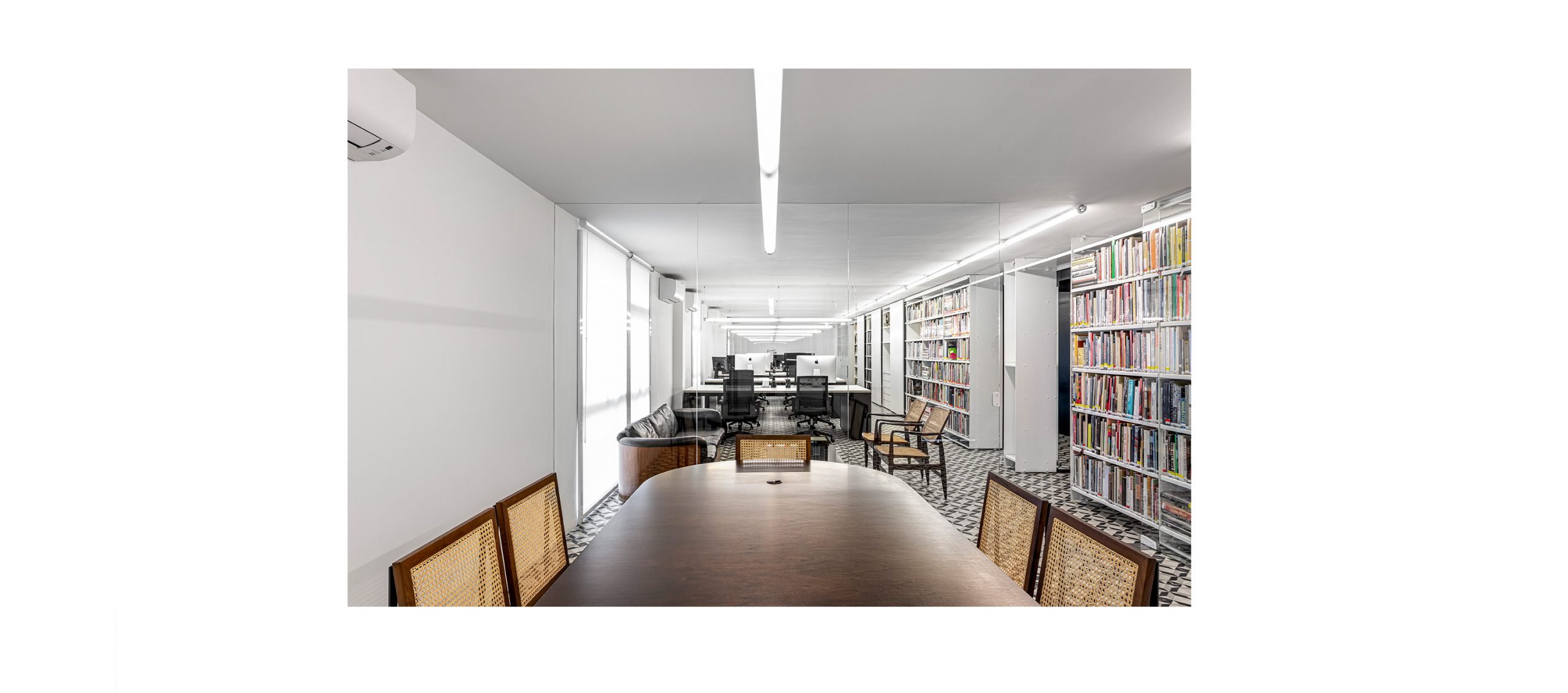

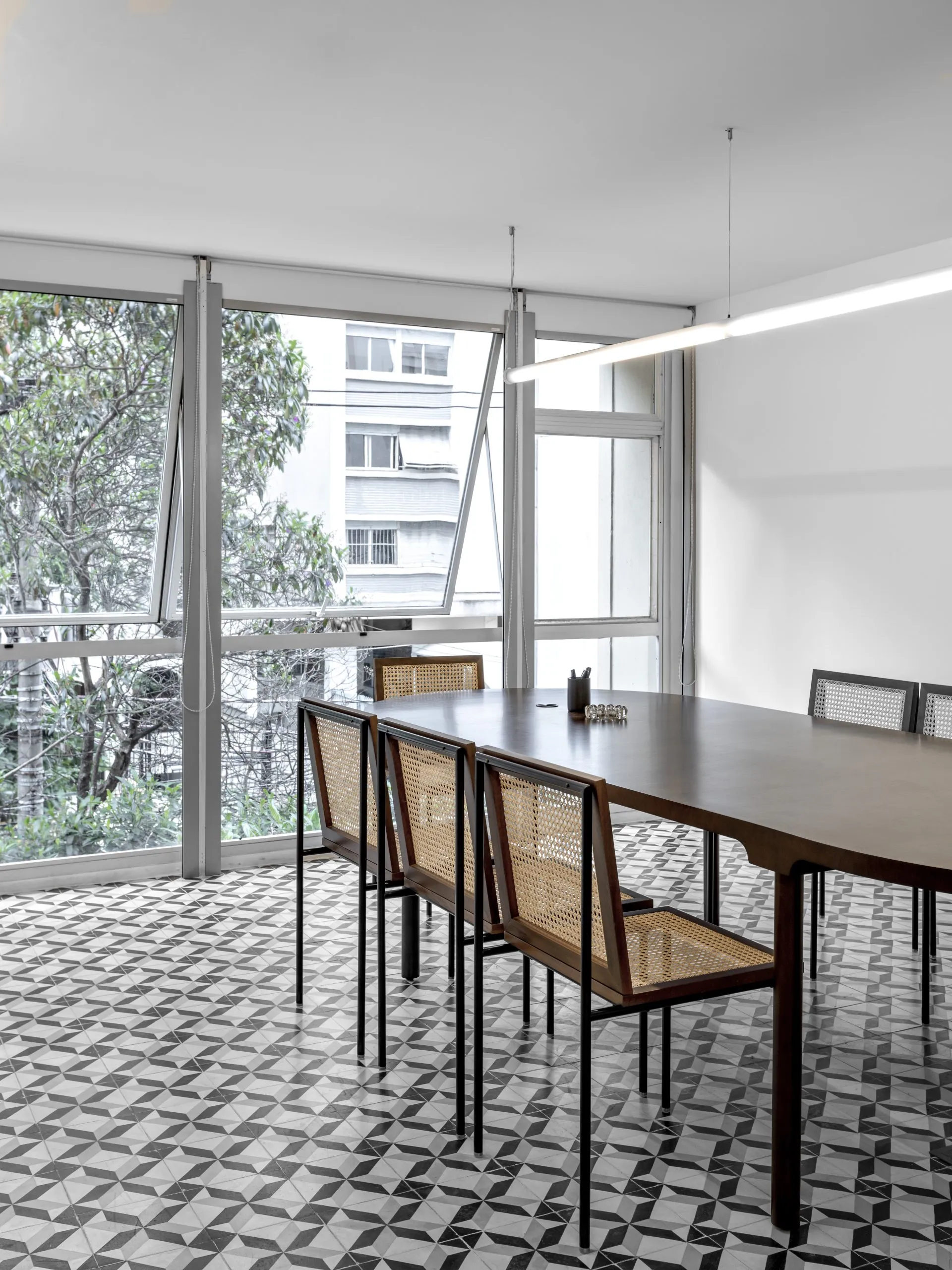

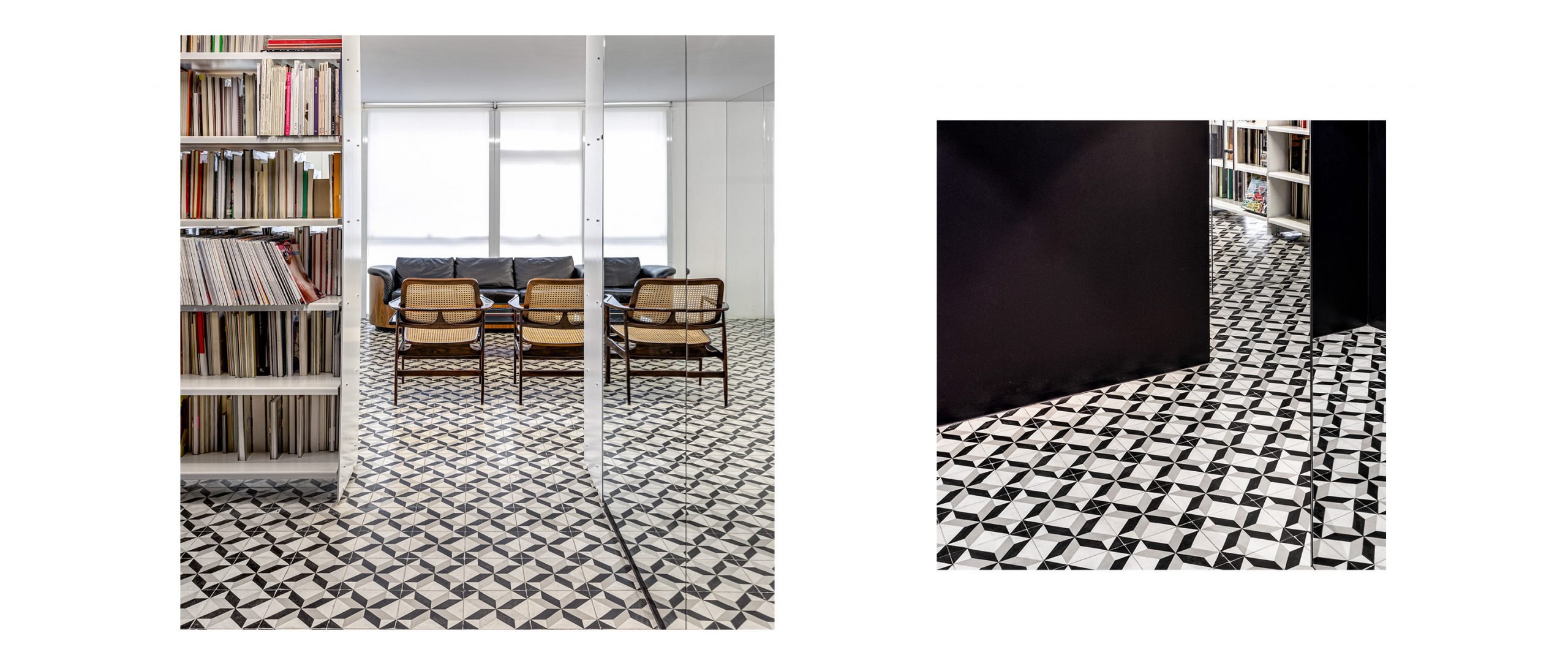

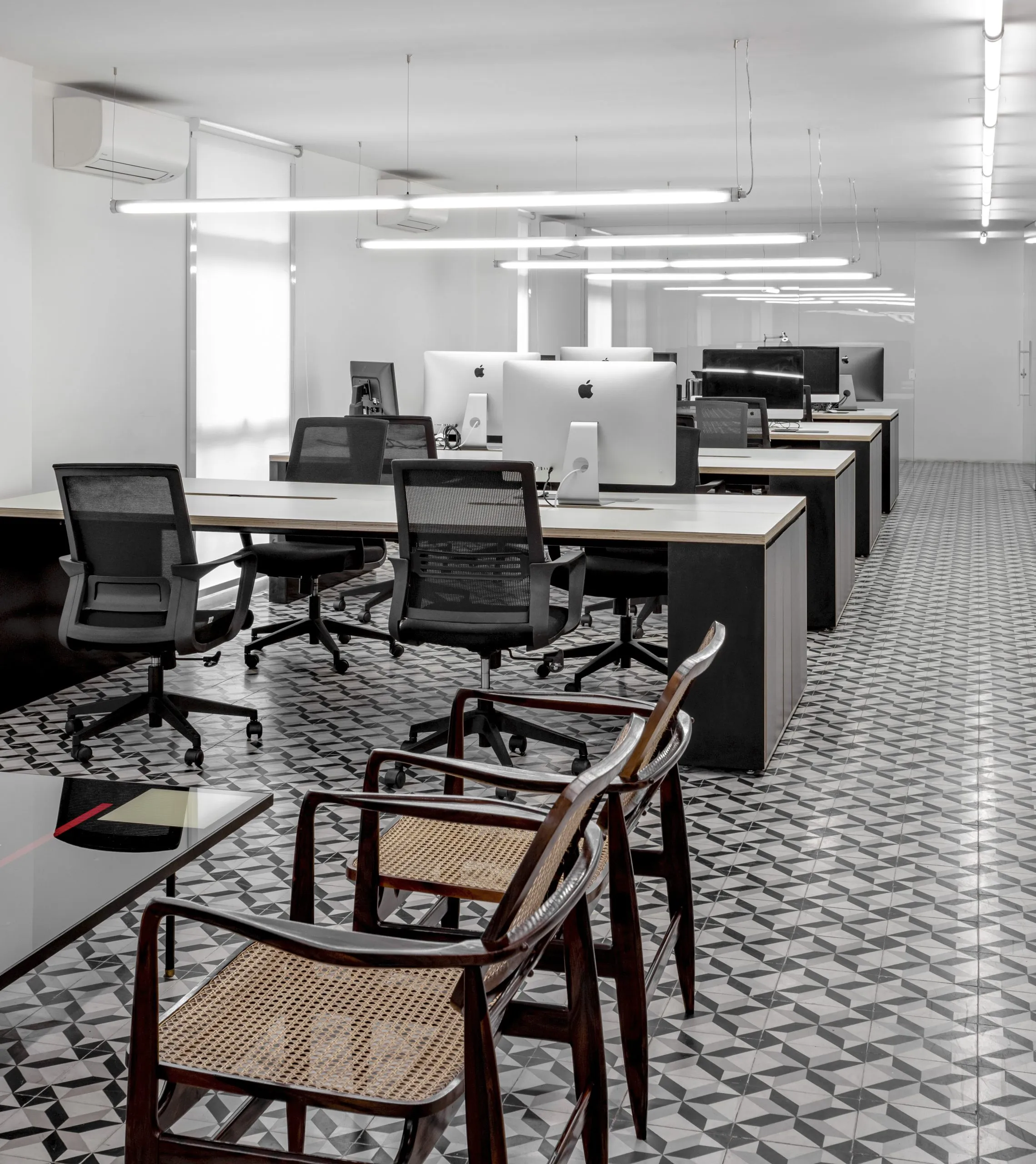

For the office, the project aimed to create a spacious and connected environment characterized by the modular rhythm of a metal bookshelf that organizes and defines all the work areas. This bookshelf features sliding panels and movable shelves, providing flexibility for various activities within the space. The cohesion of the project is emphasized by the hydraulic tile flooring, which extends throughout the entire workspace.

021

01

011

012

017

018

020

In 2023, a project was developed for the client’s personal studio, designed to be a multifunctional space accommodating both the collection of their works and the materials and space needed for new creations.

The initial briefing required an open layout to create a fluid and efficient environment. The proposal included an office space at the entrance with a desk for work and meetings, a storage area, and a small restroom. The majority of the space would be dedicated to a large private room for creating works, which would include a kitchenette, a collection area for artworks, and a full bathroom.

Given the need for a quick completion of the project and construction to facilitate the studio’s move from New York to São Paulo, the design opted for exposed electrical and data infrastructure, a uniform flooring throughout the space, and cabinetry as a structural element. Tauari wood shelves, using the same structural system as the library, were crucial for organizing the space. They not only define the communal and private areas but also accommodate the large volume of books, collection items, and materials brought from the previous studio. Additionally, a metal structure was installed in the studio’s ceiling to support the construction of a series of sculptures the client was working on at the time.

METRO GB 02

METRO GB 06

METRO GB 03

METRO GB 09

METRO GB 11

METRO GB 13

METRO GB 14

Ficha Técnica

Project name: biblioteca, escritório e ateliê  giovanni bianco, 2020-2024
Architectural Design:  Gustavo Cedroni, Martin Corullon, Fabiane Sakai, Amanda Amicis, Thiago Nicoletti.
Type: renovation and reorganization of an existing space
Construction Area: 140m²
Local: São Paulo, Brasil
Completion Date: 2020 (office)/2021(library)/2024 (studio)
Photos: Fran Parente (office and library) e Gian Franco Vacani (studio)
